Hinges Extra & Super

These products can be used for ARMRESTS, HEADRESTS and BACKRESTS

Download PDF catalogue



Category:

Description

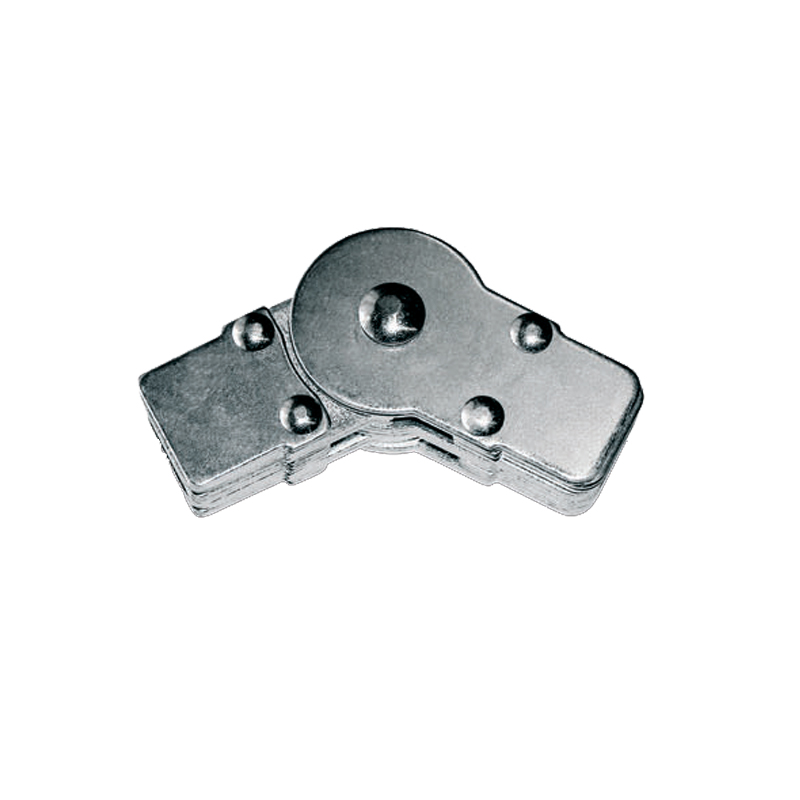

The EXTRA series is a new solution that the Officina Meccanica Tornaghi offers to meet needs for great resistance, compactness and small dimensions in the field of functional fittings to be mounted in the pipes of the sofa and bed frames. The EXTRA hinges have been designed to stand great workloads and are the ideal solution for those who seek safety ensured by a high quality product capable to resist external stress. The layered structure with double internal mechanism made of special carbonitrided steel allows to achieve a remarkable wear and tear resistance as well as load bearing capacity. These hinges have been designed to fit 1,2 mm (up to 1,5 mm) thick pipes. Besides the below listed models in order to meet particular needs, numerous versions have already been developed.

TYPOLOGY

HINGE EXTRA
  for pipe 30 x 20
with 4+4 plates for internal mechanism

HINGE EXTRA
for pipe 30 x 30

with 4+4 plates for internal mechanism

HINGE EXTRA SUPER
for pipe 30 x 30

with 8+4 plates for internal mechanism

HINGE EXTRA SUPER
for pipe 30 x 60

with 16+8 plates for internal mechanism

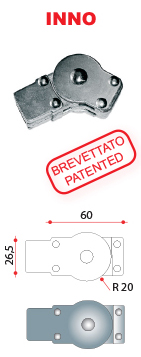

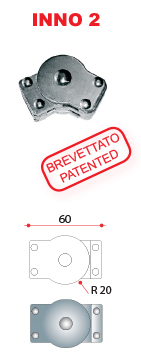

Some of the EXTRA and EXTRA SUPER hinges are also available in INNO and INNO2 versions, suitable for solutions in which it is not possible to insert the hinge directly into the pipe. To order these particular versions it is enough to add INNO or INNO2 to the selected product code.

HINGE EXTRA
  for pipe 30 x 20

  with 4+4 plates for
internal mechanism
HINGE EXTRA SUPER
strengthened version
for pipe 30 x 30

 with 8+4 plates for
internal mechanism
HINGE EXTRA
  for pipe 30 x 30

with 4+4 plates for
internal mechanism
HINGE EXTRA SUPER
strengthened version
  for pipe 30 x 60

with 16+8 plates for
internal mechanism

HINGE EXTRA
  for pipe 30 x 20

with 4+4 plates for
internal mechanism
HINGE EXTRA SUPER
strengthened version
for pipe 30 x 30

with 8+4 plates for
internal mechanism
HINGE EXTRA
  for pipe 30 x 30

with 4+4 plates for
internal mechanism
HINGE EXTRA SUPER
strengthened version
for pipe 30 x 60

with 16+8 plates for
internal mechanism

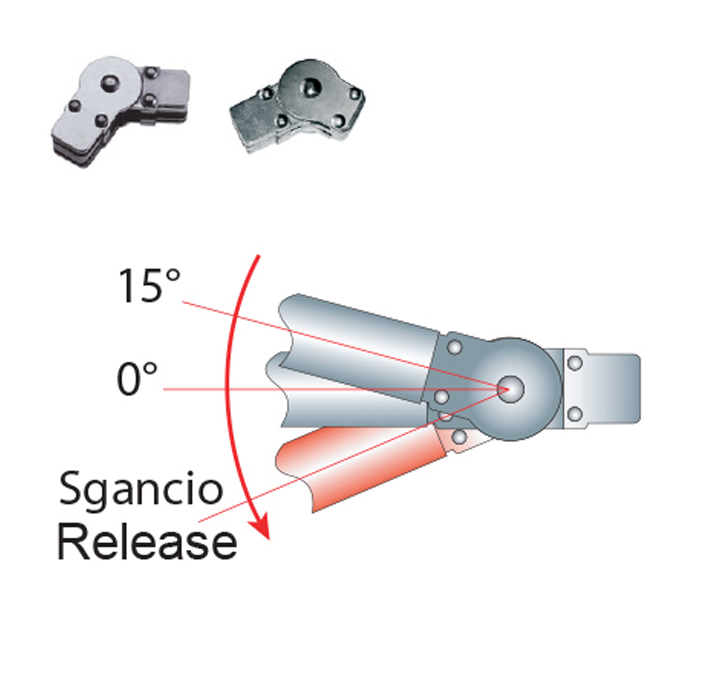

MODEL

2 positions reverse

15° - 0° Release

Extra
Cod. pipe 30 x 20: AC52EXR
Cod. pipe 30 x 30: AC62EXR

Extra Super
Cod. pipe 30 x 30: AC62EXSUR
Cod. pipe 30 x 60: AC92EXSUR

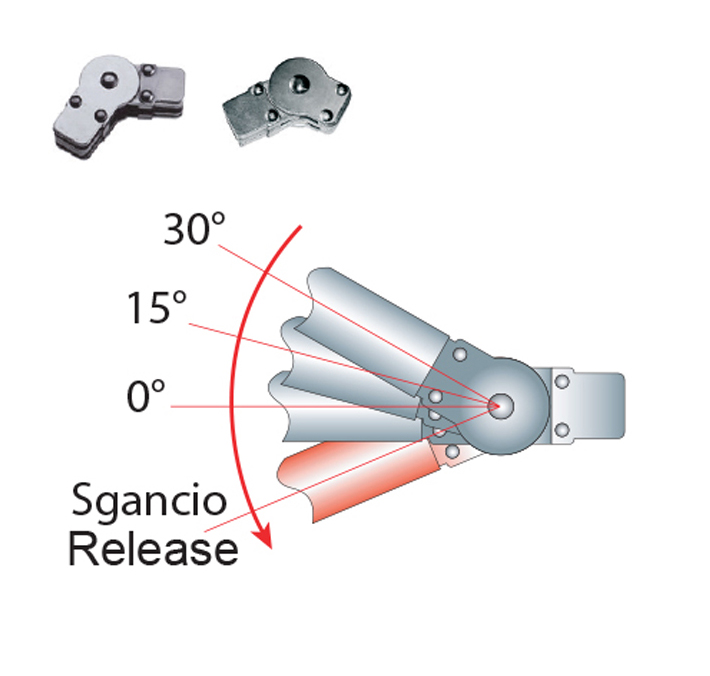

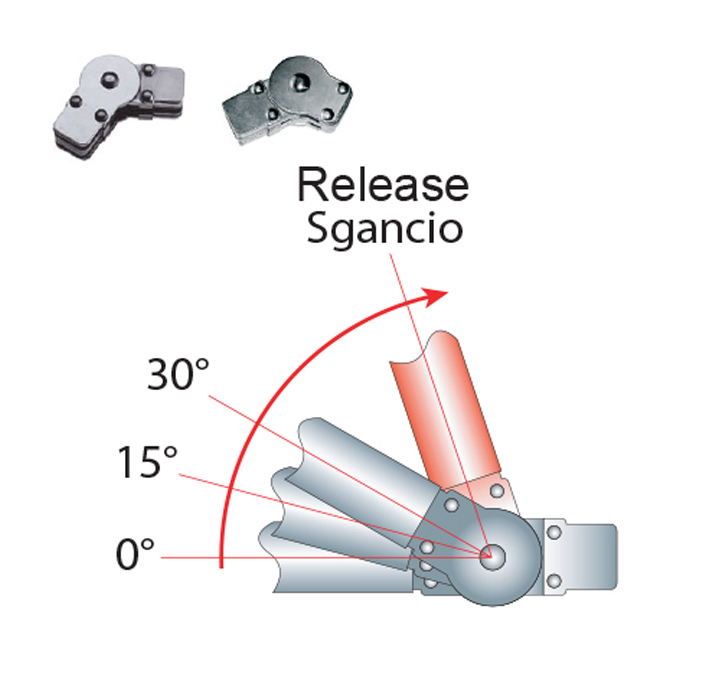

3 positions straight

0° – 15° – 30° Release

Extra
Cod. pipe 30 x 20: AC53EX
Cod. pipe 30 x 30: AC63EX

Extra Super
Cod. pipe 30 x 30: AC63EXSU
Cod. pipe 30 x 60: AC93EXSU

3 positions reverse

30° – 15° – 0° Release

Extra
Cod. pipe 30 x 20: AC53EXR
Cod. pipe 30 x 30: AC63EXR

Extra Super
Cod. pipe 30 x 30: AC63EXSUR
Cod. pipe 30 x 60: AC93EXSUR

3 positions reverse 90°

90° – 75° – 60° Release

Extra
Cod. pipe 30 x 20: AC53EXR90
Cod. pipe 30 x 30: AC63EXR90

Extra Super
Cod. pipe 30 x 30: AC63EXSUR90
Cod. pipe 30 x 60: AC93EXSUR90

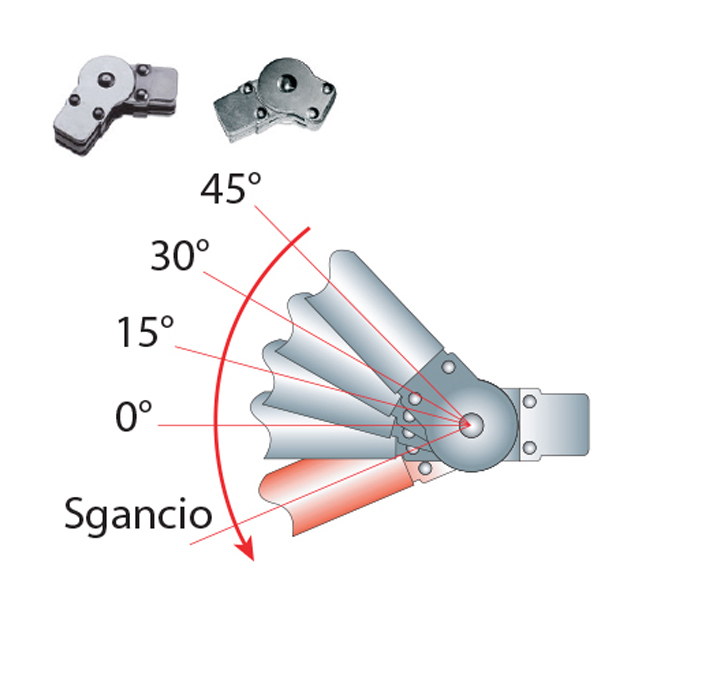

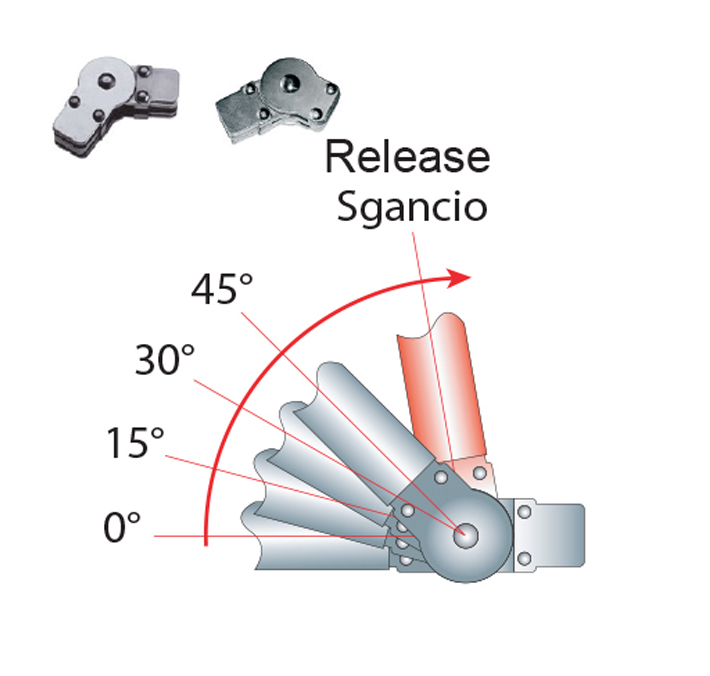

4 positions straight

0° – 15° – 30° – 45° Release

Extra
Cod. pipe 30 x 20: AC54EX
Cod. pipe 30 x 30: AC64EX

Extra Super
Cod. pipe 30 x 30: AC64EXSU
Cod. pipe 30 x 60: AC94EXSU

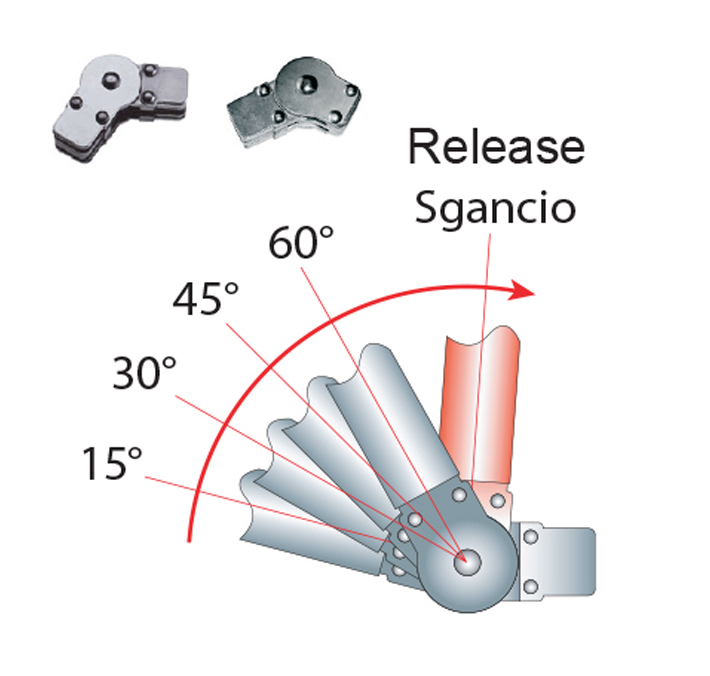

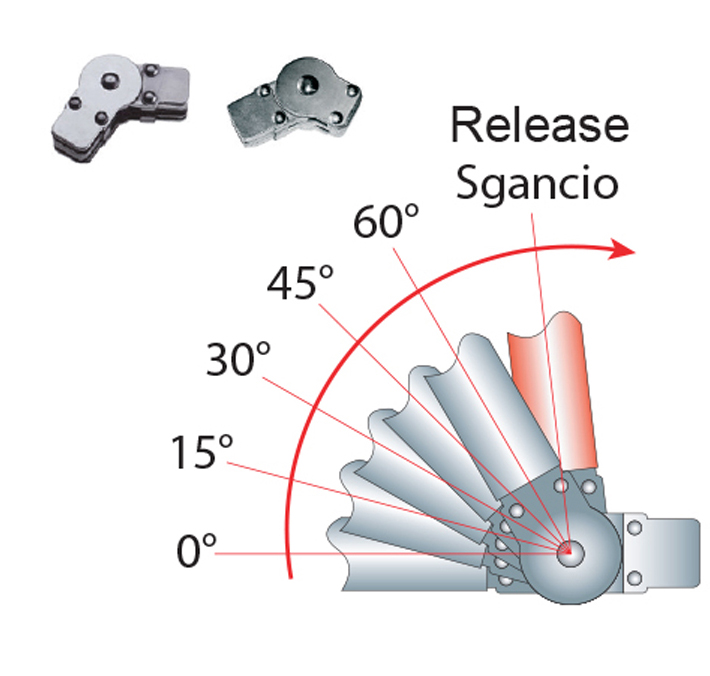

4 positions straight 15°

15° – 30° – 45° -60° Release

Extra
Cod. pipe 30 x 20: AC5415EX
Cod. pipe 30 x 30: AC6415EX

Extra Super
Cod. pipe 30 x 30: AC6415EXSU
Cod. pipe 30 x 60: AC9415EXSU

4 positions reverse

45° – 30° – 15° – 0° Release

Extra
Cod. pipe 30 x 20: AC54EXR
Cod. pipe 30 x 30: AC64EXR

Extra Super
Cod. pipe 30 x 30: AC64EXSUR
Cod. pipe 30 x 60: AC94EXSUR

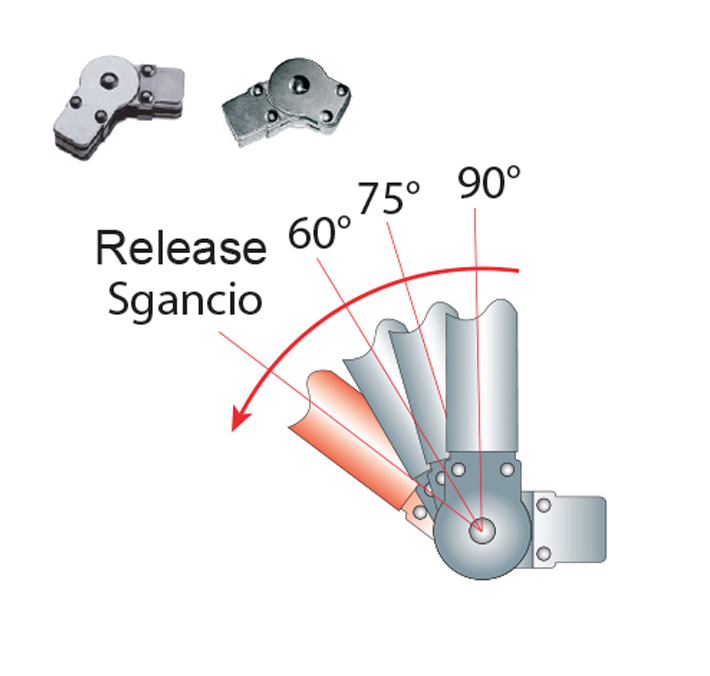

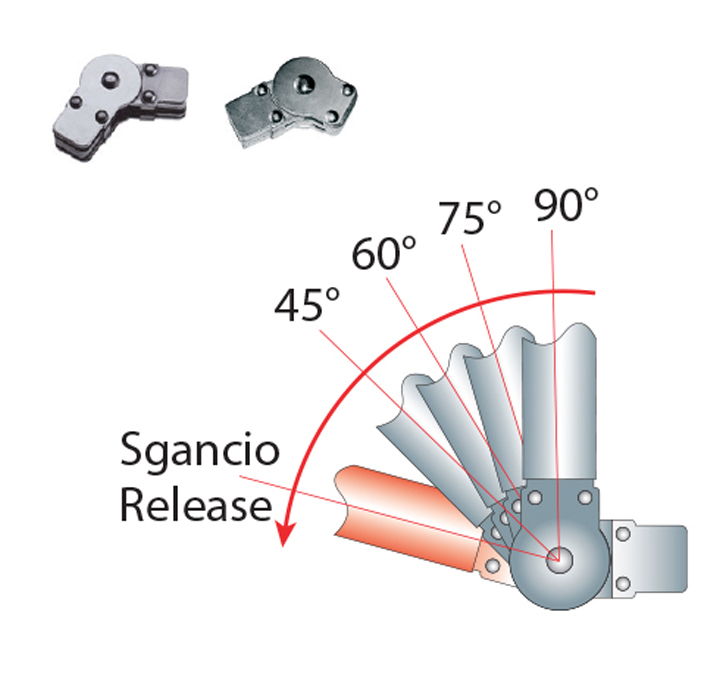

4 positions reverse 90°

90° – 75° – 60° – 45° Release

Extra
Cod. pipe 30 x 20: AC54EXR90
Cod. pipe 30 x 30: AC64EXR90

Extra Super
Cod. pipe 30 x 30: AC64EXSUR90
Cod. pipe 30 x 60: AC94EXSUR90

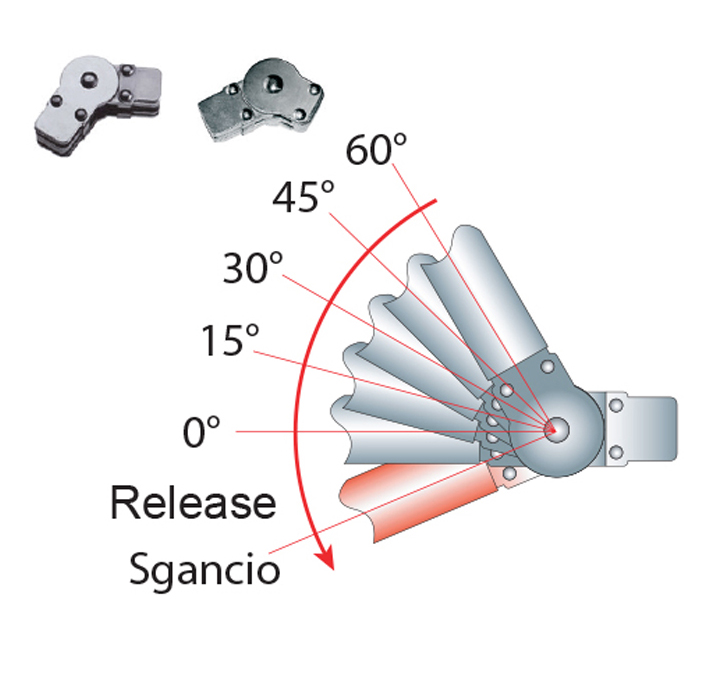

5 positions straight

0° – 15° – 30° – 45° – 60° – Release

Extra
Cod. pipe 30 x 20: AC55EX
Cod. pipe 30 x 30: AC65EX

Extra Super
Cod. pipe 30 x 30: AC65EXSU
Cod. pipe 30 x 60: AC95EXSU

5 positions reverse

60° – 45° – 30° – 15°
– 0° – Release

Extra
Cod. pipe 30 x 20: AC55EXR
Cod. pipe 30 x 30: AC65EXR

Extra Super
Cod. pipe 30 x 30: AC65EXSUR
Cod. pipe 30 x 60: AC95EXSUR

5 positions reverse 90°

90° – 75° – 60° – 45°
– 30° – Release

Extra
Cod. pipe 30 x 20: AC55EXR90
Cod. pipe 30 x 30: AC65EXR90

Extra Super
Cod. pipe 30 x 30: AC65EXSUR90
Cod. pipe 30 x 60: AC95EXSUR90

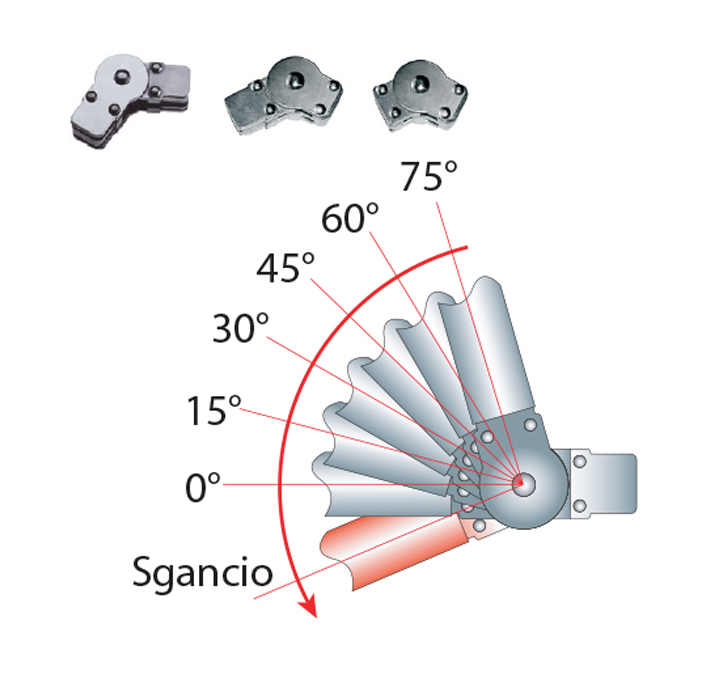

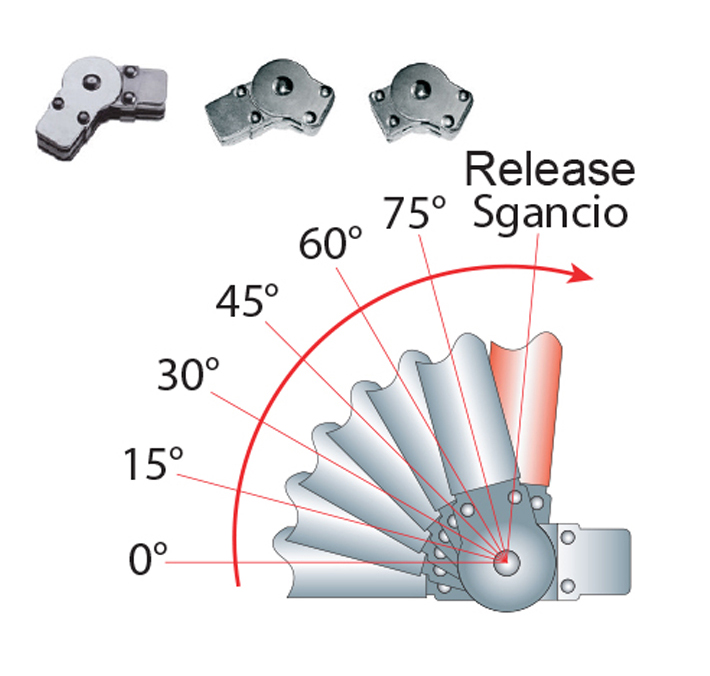

6 positions straight

0° – 15° – 30° – 45° – 60°
– 75° – Release

Extra
Cod. pipe 30 x 20: AC56EX
Cod. pipe 30 x 30: AC66EX

Extra Super
Cod. pipe 30 x 30: AC66EXSU
Cod. pipe 30 x 60: AC96EXSU

6 positions reverse

75° – 60° – 45° – 30°
– 15° – 0° – Release

Extra
Cod. pipe 30 x 20: AC56EXR
Cod. pipe 30 x 30: AC66EXR

Extra Super
Cod. pipe 30 x 30: AC66EXSUR
Cod. pipe 30 x 60: AC96EXSUR

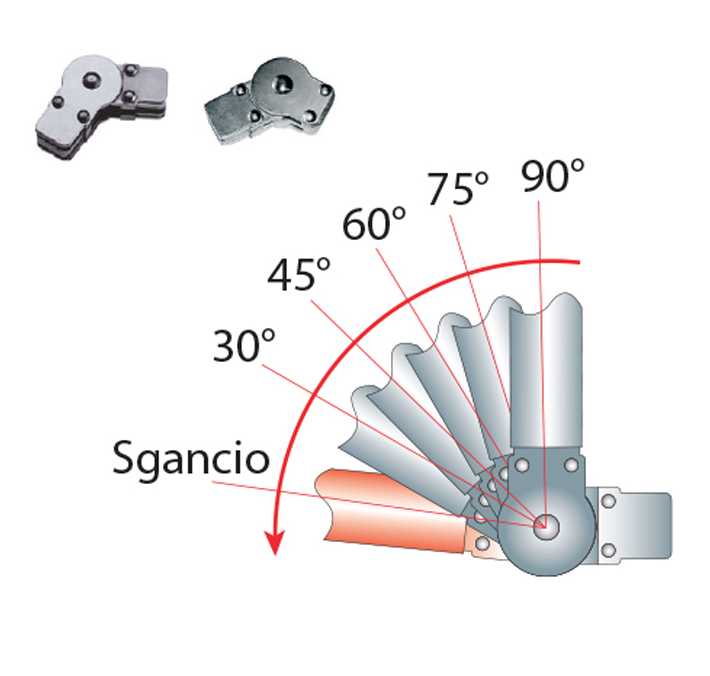

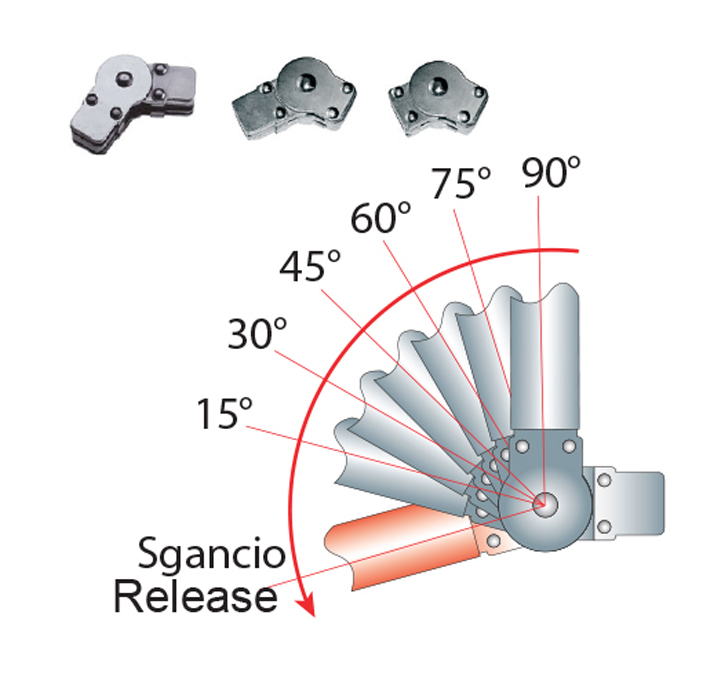

6 positions reverse 90°

90° – 75° – 60° – 45° – 30°
– 15° – Release

Extra
Cod. pipe 30 x 20: AC56EXR90
Cod. pipe 30 x 30: AC66EXR90

Extra Super
Cod. pipe 30 x 30: AC66EXSUR90
Cod. pipe 30 x 60: AC96EXSUR90

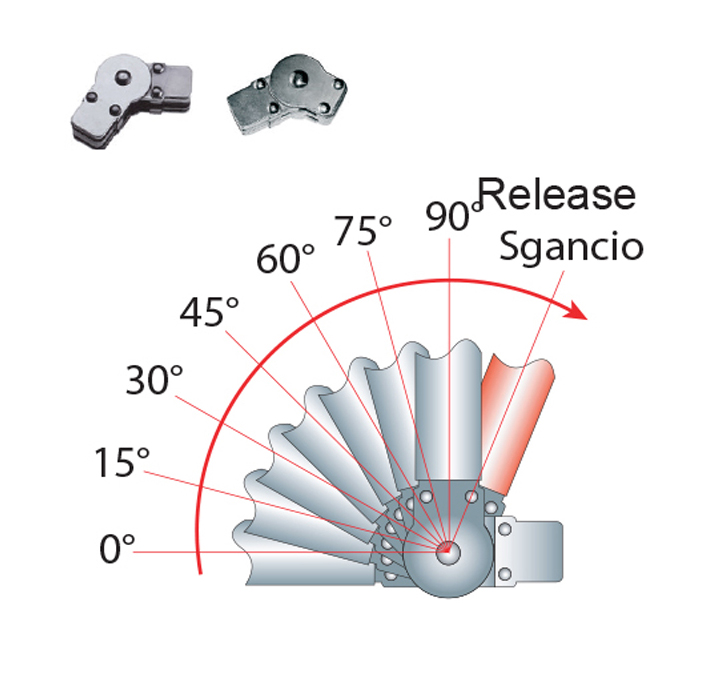

7 positions straight

0° – 15° – 30° – 45° – 60°
– 75° – 90° – Release

Extra
Cod. pipe 30 x 20: AC57EX
Cod. pipe 30 x 30: AC67EX

Extra Super
Cod. pipe 30 x 30: AC67EXSU
Cod. pipe 30 x 60: AC97EXSU

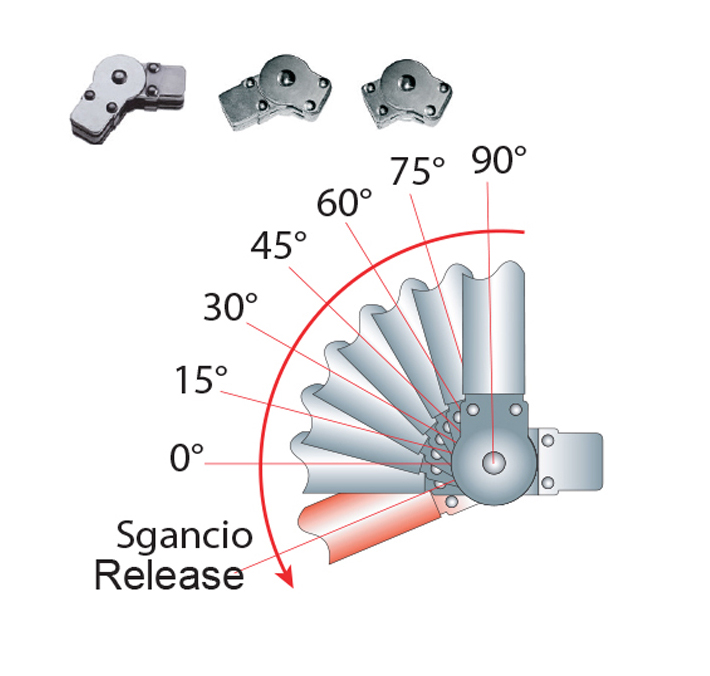

7 positions reverse

90° – 75° – 60° – 45° – 30°
– 15° – 0° – Release

Extra
Cod. pipe 30 x 20: AC57EXR
Cod. pipe 30 x 30: AC67EXR

Extra Super
Cod. pipe 30 x 30: AC67EXSUR
Cod. pipe 30 x 60: AC97EXSUR

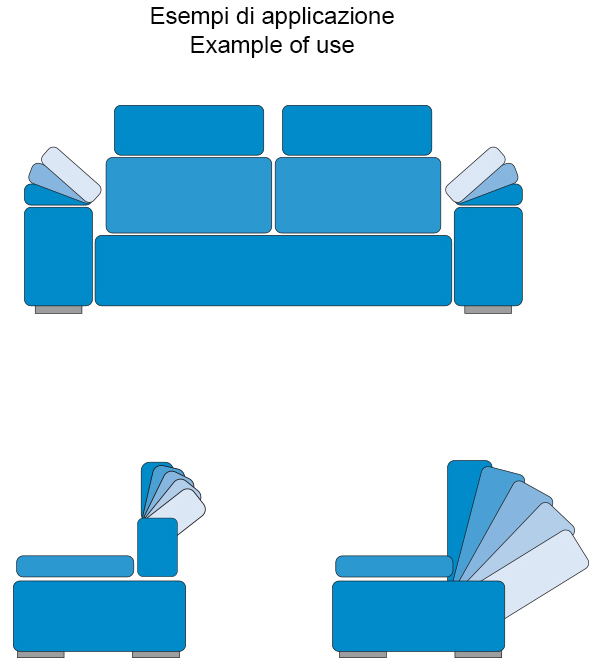

These products can be used for
ARMRESTS, HEADRESTS and BACKRESTS

ESEMPIO DI SOLLEVAMENTO
