Hinges Extra Mini

7 positions reverse
90° – 75° – 60° – 45° – 15° – 0° – Release
Cod. pipe 20 x 20: AC47EXMR
Cod. pipe 20 x 30: AC57EXMR

4 positions reverse 90°
90° – 75° – 60° – 45° – Release
Cod. pipe 20 x 20: AC44EXMR90
Cod. pipe 20 x 30: AC54EXMR90

These products can be used for ARMRESTS and HEADRESTS

Download pdf catalogue

Category:

Description

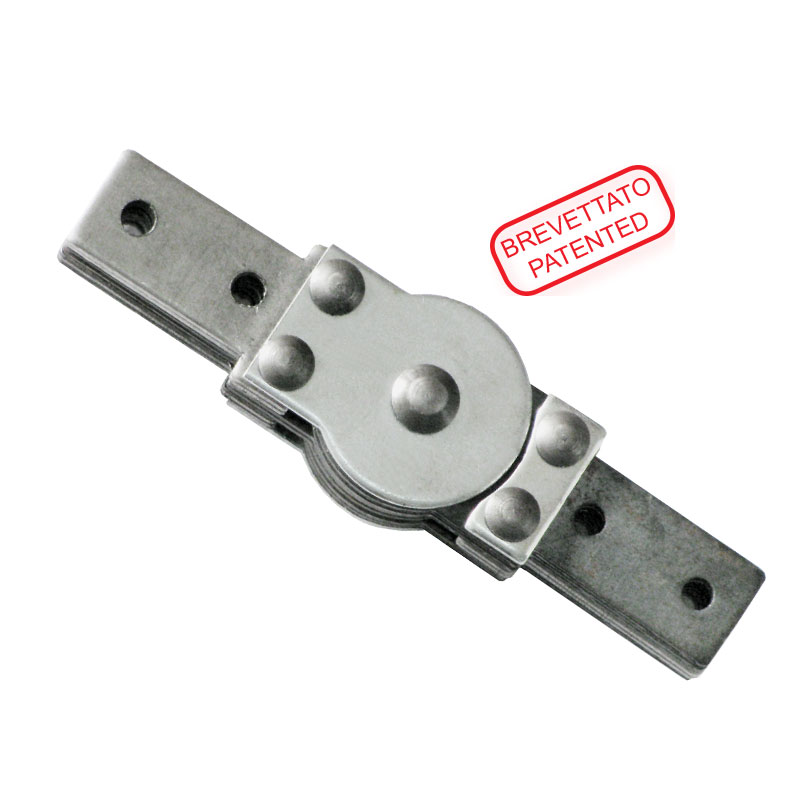

Hinge with different working positions made of hardened steel, available in various models. Its main characteristic is a very small size, which allows the use of 20x20 and 20x30 pipes. Besides the below listed models, in order to meet particular needs, numerous versions have already been developed.

HINGE ETRA MINI
pipe 20 x 20

HINGE EXTRA MINI
pipe 20 x 30

The hinge is also available in INNO and INNO2 versions, suitable for solutions in which it is not possible to insert the hinge directly into the pipe. To order these particular versions it is enough to add INNO or INNO2 to the selected product code.

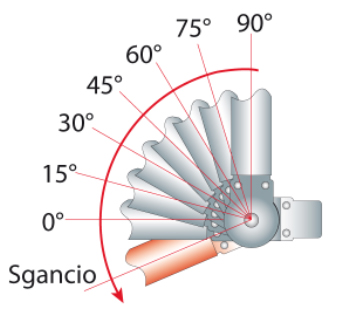

7 position reverse
90° – 75° - 60° - 45° - 15° - 0° - Release
Cod. pipe 20 x 20: AC47EXMR
Cod. pipe 20 x 30: AC57EXMR

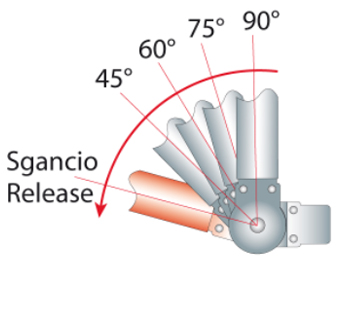

4 position reverse 90°
90° – 75° - 60° - 45° - Release
Cod. pipe 20 x 20: AC44EXMR90
Cod. pipe 20 x 30: AC54EXMR90

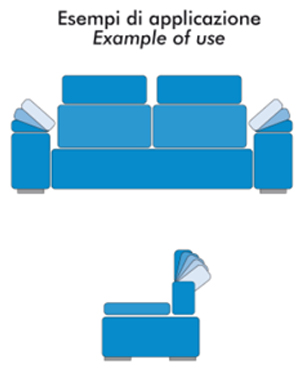

These products can be used for
ARMRESTS and HEADRESTS
